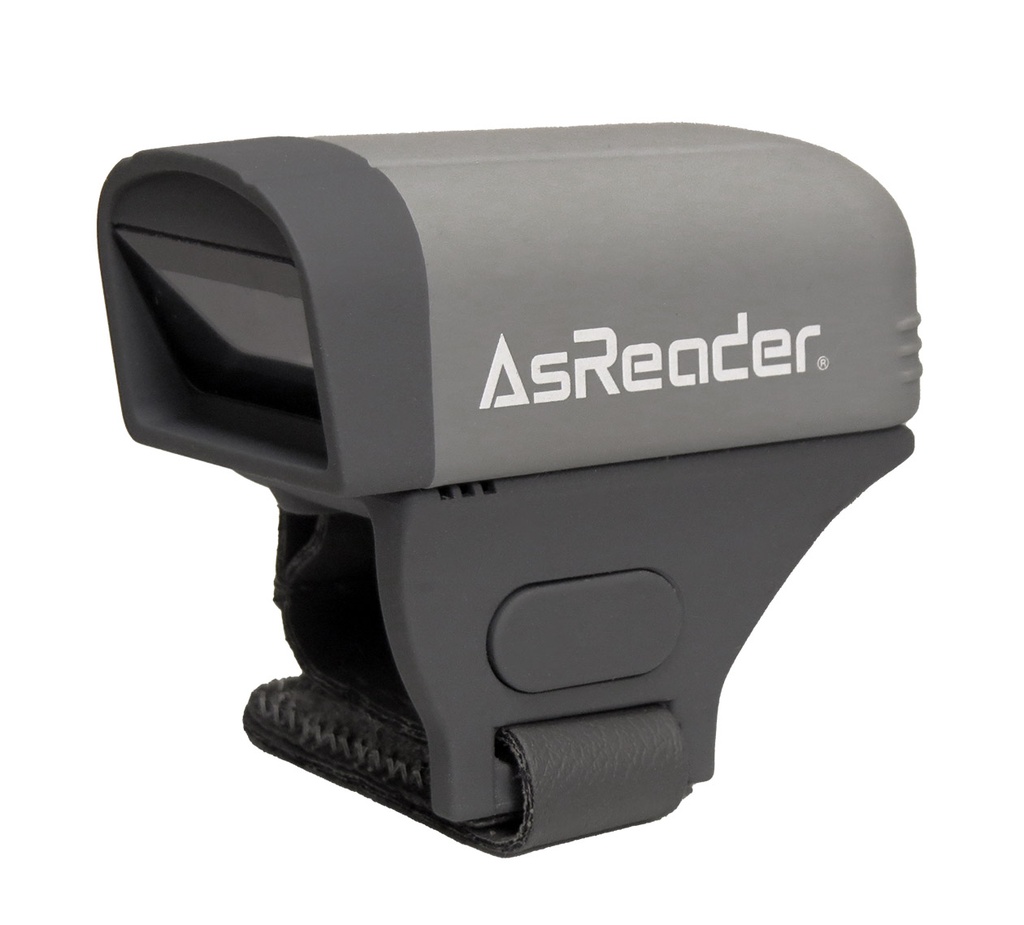

Wearable Finger-Type 1D/2D Barcode Scanner (Bluetooth) by AsReader ASR-023B

  • Color

399.00 399.00 399.0 USD


This combination does not exist.

Add to Cart

  • SKU:
  • Brand: AsReader
  • Estimated Delivery: 5 days**
  • UPC:
  • Manufacturer's Warranty: 2-Year Limited Extended Warranty Service Pack
  • Contents: (1) Finger Scanner; (1) Bluetooth USB Adapter; (1) USB Charging Cable & Magnetic detachable connector [Note: AC Adapter not included]

Lightweight and easy to use, the ASR-023B Finger-Type Scanner is worn on your right index finger and reads the most common 1D/2D barcodes by pressing the trigger with your thumb. The wearable hands-free design lets you work more efficiently since both hands can be used. The Finger Scanner is set to be used on the right hand and the hook & loop band is easily adjustable for multiple users and can be used with or without gloves.

Using a CMOS Sensor and a red aiming laser, the ASR-023B finger ring scanner will read barcodes from approximately 1.0" to 9.5" depending on the barcode type, size, and density. Depending on your settings, the built-in 400mAh rechargeable lithium-ion battery will scan approximately 8,000 scans between charging. The scanner will fully charge in approximately 1.5 hours and can be charged using the magnetic detachable connector and USB Type-C connection (note: the wall AC Adapter is not included). FCC/CE certified, the scanner can be operated from 14°F to 113°F (-10°C to 45°C) at 10~90%RH (however, please charge at 0°C or more). The Action Indicator light at the back of the scanner is red when charging and will turn off when fully charged. The Bluetooth Indicator light will be solid blue when connected and blink or off when disconnected. When the trigger button is pressed, the scan window will emit a red beam and a beep sounds when the barcode is scanned.

If the scanner is set to Real-time Mode once the barcode is scanned it will immediately send the data transmission to the device or PC up to 33 feet/10 meters away. If the scanner is set to Buffer Mode the device's built-in 1.8MB flash memory can store up to 90,000 barcodes to be downloaded later using the USB cable to connect to a computer like an external drive.

For use in areas when a scanner is needed in high-security areas where smart devices, cellular, imagers, video, WiFi, or Bluetooth devices are not allowed (for example Military SCIFs). The Finger Scanner can be set in Buffer Mode to meet the high-security requirements and record the data for downloading later when out of the secure area.

The AsReader ASR-023B wearable scanner can be used in most environments and industries.
Logistics / Transportation / Warehouse
Manufacturing / Agriculture
Healthcare / Nursing / Hospitals
Retail / Picking / Point of Sale (POS)
Military (DOD) / Government / First-Responders

Readable barcodes:
1DEAN, UPC, Code 11, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar(NW7), Interleaved 2 of 5(ITF-6, ITF-14), ISBN, ISSN, Plessey, MSI-Plessey, GS1 Databar, GS1 Composite Code, Industrial 2 of 5, Matrix 2 of 5

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, HanXin code

1. This device is NOT WATERPROOF, do not use it in the rain or wash your hands while wearing the device.
2. The Charging cable has a built-in magnet that may erase the data on magnetic cards (ie credit cards). To protect your data keep more than 3.9in/10cm away from this magnet.

[ ! ] We strive to provide our customers with accurate product information. Manufacturers, suppliers, and others provide all product information for this page and we may not have fully verified all information. Product packaging and material may contain more and/or different information from the website. Electronic devices may be subject to the Federal Communications Commission's testing, equipment authorization, and device marking and labeling requirements. For additional information about a product, please contact the manufacturer.

  • [RETURN & REFUND REQUIREMENT]  KEEP ALL PACKAGING AND INSTRUCTIONS - Refund will be provided ONLY if the Finger Scanner is returned in the ORIGINAL PACKAGING and ALL COMPONENTS are returned in good condition.

  • **Estimated Delivery may require additional time for larger orders dependent on in-stock inventory.

  • Check the Compatibility tab below before purchasing.

  • Please review our RETURN POLICY


                            Data Sheet:

                            This device is not waterproof, do not use in rain or wash your hands while wearing the device.

                            Color: Gray
                            Material: ABS
                            Dimensions:  1.1" x 1.9" x 1.7" (28.0mm x 48.5mm x 42.5mm)
                            Weight (with battery): .89 oz (25.1g)

                            Certificates: FCC / CE
                            Bluetooth 4.0 (ClassicHID/SPP), BLE

                            Drop: 5' / 1.5m (6 sides, 4 edges)

                            1.8MB Built-in Flash Memory
                            400mAh Built-in Rechargable Lithium Ion battery

                            Power Source: USB cable & Magnetic detachable connector (AC Adapter not included).  Maximum input to the AsReader scanner is 5V 1A.
                            [Note: AC Adapter not included. Full charge will take approximately 1.5 hours.

                            Kit Components:
                            (1) ASR-023D Finger-type Scanner
                            (1) USB Bluetooth Adapter
                            (1) ASA-113C USB-C/USB-A charging cable & Magnetic detachable connector

                            Minimal setup required. Refer to User Manual for setup instructions.

                            This device is not waterproof, do not use in rain or wash your hands while wearing the device.

                            Care for the Device: Please keep the device dry and clean. Wipe with a soft, dry cloth. DO NOT USE SOLVENTS-Using strong solvents or clearner may cause deterioration or color changes.

                             12. For charging, use a dedicated cable and the magnetic detachable connector. Please use a charging adapter with an output power of 5V1A (not included in kit). Using different charges may result in failed charges.

                            1. The terminal of the USB Charging Cable has a built-in magnet, which may erase the data on magnetic cards such as credit cards. To protect your data, please keet magnetic cards more than 4" away from these magnets.

                            Bluetooth Troubleshooting:

                            User Guide

                            In order to avoid personal injury, device failure, fire or similar circumstances, please make sure to read the full Safety Instructions included in the User Manual found in the Installation tab.

                            **CAUTION** USE OF MAGNETS IN THIS PRODUCT
                            The USB charging cable and it's magnetic detachable connector have built-in magnets which may erase the data on magnetic cards such as credit cards. To protect your data, please keep magnetic cards at least 4"/10cm away from these magnets.

                            Do not attempt to disassemble, modify or repair the device yourself, otherwise it may cause malfunction, fire or electrical shock. AsReader and Kyocera are not responsible for any malfunction of the product or mobile device caused by modification.

                            Do not charge the battery in wet environments as water may leak through the grip and the intallation port of the AsLock Header to the battery. Otherwise it may result in electrical shock, short circuit, fire or burns. Also, do not use this product near water such as a bathroom, kitchen or washroom, it may cause fire or electrical shock.

                            CMOS Laser Product. Do not look into the laser beam or point at at other people. Looking directly into the laser beam may cause damage to your eyes. If you suspect a laser beam injury seek medical attention immediately.

                            CAUTION / SAFETY
                            For charging, please use the dedicated USB charging cable with the magnetic detachable connector that is provided with this product. Use this cable with your own wall AC Adapter that provides an output of 5V/1A (not included in this kit). Using different cable or output chargers may result a malfunction and is not covered by the warranty.

                            If the scanner gets wet, please wipe it off immediately with a clean, dry cloth.
